Product Description

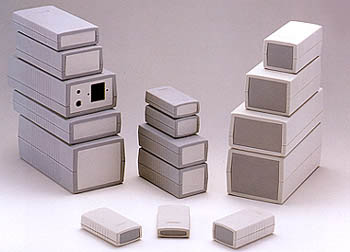

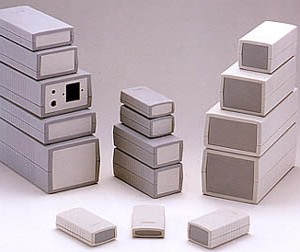

These enclosures comprise of two parts with specially designed side panels. The panels are made of the same ABS plastic or aluminium;
The upper and lower parts are textured in order to avoid scratches and to maintain the external finish in good condition;
The enclosures are provided with guiding groves for vertical and horizontal fixing of the printed boards;
- The enclosures are made of ordinary or flame tight ABS plastic according to the standard UL94-VO;
- Ingress protection as per IP54 (IEC 529) (penetration of dust and moisture, not causing the device malfunctioning);
- 4 screw nails and 4 rubber gaskets (sizes from 150х80х30 to 190х100х80) are included in the scope of supply;
- the enclosures are made of ABS plastic, light-grey painted with dark-grey side panels;
- dark-grey colored ABS UL94-V0 enclosures with light-grey side panels.
Note: 4 M3 flat-head screws provide the reliable fastening of the top and bottom parts through the brass thread bush.
For more details please view the enclosed pdf file: Gainta_g400_series
Dimensions (mm) |
|
|---|---|
| G401 | 90 x 50 x 16 |
| G403 | 90 x 50 x 24 |
| G404 | 90 x 50 x 32 |
| G407 | 120 x 60 x 30 |
| G410 | 120 x 60 x 40 |
| G412 | 120 x 60 x 50 |
| G413 | 150 x 80 x 30 |
| G416 | 150 x 80 x 45 |
| G418 | 150 x 80 x 60 |
| G421 | 190 x 100 x 40 |
| G422 | 190 x 100 x 60 |
| G425 | 190 x 100 x 80 |
| G430 | 90 x 50 x 16 |
| G431 | 90 x 50 x 24 |
| G434 | 90 x 50 x 32 |
| G436 | 120 x 60 x 30 |
| G438 | 120 x 60 x 40 |
| G440 | 120 x 60 x 50 |
| G443 | 150 x 80 x 30 |
| G445 | 150 x 80 x 45 |
| G447 | 150 x 80 x 60 |
| G452 | 190 x 100 x 40 |
| G454 | 190 x 100 x 60 |
| G459 | 190 x 100 x 80 |
