Описание на продукта:

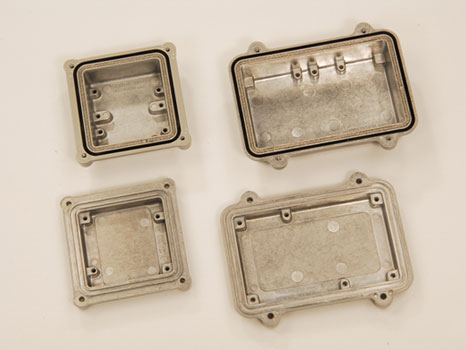

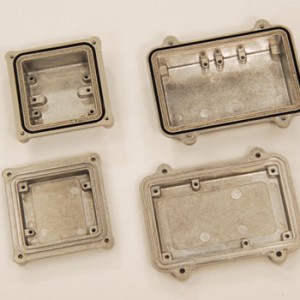

The molded aluminium enclosures of HQ0xxS series are supplied with additional sealing gaskets to provide the ingress protection from penetration of dust and moisture IP67.
Characteristics
- material: aluminium alloy ADC-12 (as per the Japanese standard specification JIS);
- the holes for wall mounting and lid fasteners are located outside the inner section of the enclosure to provide reliable sealing;
- the lid is fixed to the enclosure with stainless steel M4 flat-head screws;
- the enclosure may be painted with light-grey or black powder paint. Add the corresponding marking to the enclosure designation: “LG” for light-grey, and “BK” for black;
- silicon pad along the connection line between the lid and the enclosure provides the ingress protection from dust and moisture IP67 (“S” marking);
For more details, please see catalog: Gainta Industries_2012 PDF CATALOG (NEW)
Note
The items are supplied WITHOUT the pads, unless “S” is indicated in the order.
